SHOW US YER MACHINE SHOP STUFF!
« on: January 25, 2011, 09:37:30 PM »
Whatever you have that might commonly be found in a machine shop toss a few pics up here. I wish I had better quality more industrial machines such as a Bridgeport mill, and a Southbend lathe, but that is not the case. I mainly have the often cussed Atlas brand equipment in my little shop. The reasons for this are, one it was what I encountered, two, the prices fit this poor boys pocket, and three, they can easily be moved around either by myself, or with another stout fellow.

With that said, I enjoy using these machines from time to time for small jobs as they come up and I really enjoy owning these machines, even if they are lowly Atlas brand machines.

« Last Edit: July 12, 2017, 02:05:24 PM by Uncle Buck »
You boys better hold on cause i'm gonna have to stand on it!

NEED A 1/2" BONNEY STREAMLINE COMBINATION AND ANY OVER 13/16" TOO!



Andrew Jackson quote: But you must remember, my fellow-citizens, that eternal vigilance by the people is the price of liberty, and that you must pay the price if you wish to secure the blessing.

Offline X1 Mike

  • Sr. Member
  • ****
  • Join Date: Jun 2010
  • Posts: 448
  • Location: Florida
Re: SHOW US YER MACHINE SHOP STUFF!
« Reply #1 on: January 26, 2011, 01:14:54 AM »
You have more shapers than any shop I've been in in the past 15 years................. Wait is that a compliment or an insult?  scratchhead Take it as a compliment I love's me some old shapers.  beerdude

I used to work with a shaper-hand that could have come straight from central casting, he was an old dude who didn't move too fast and smoked a pipe while he was running his shaper.
The nine most terrifying words in the English language are: "I'm from the government and I'm here to help."

Offline Fins/413

  • A Tool whore
  • Global Moderator
  • Knows nut from bolt
  • *****
  • Join Date: Jun 2010
  • Posts: 12492
  • Location: Wake Forest, NC
Re: SHOW US YER MACHINE SHOP STUFF!
« Reply #2 on: January 26, 2011, 06:49:28 AM »
Cool stuff UB I really like the lathe and mill. How does the Ex Lax sign fit in? sctatcherhead :)) Just kidding old signs are neat too.
Eric Corse
1959 Chrysler New Yorker
1982 Ford Econoline
Wright tools
"A car without fins is just another car"

Offline Uncle Buck

  • Site Owner/ Founding Spammer
  • Administrator
  • Knows nut from bolt
  • *****
  • Join Date: Jun 2010
  • Posts: 13400
  • Location: Kansas-Flyover Country!
  • The name of my small shop is the Skunkworks!
Re: SHOW US YER MACHINE SHOP STUFF!
« Reply #3 on: January 26, 2011, 07:39:23 AM »
That is a good one, it's an old porcelain sign!  th-smile Plus, the fact that it's Ex-lax always kills em!  lolx
You boys better hold on cause i'm gonna have to stand on it!

NEED A 1/2" BONNEY STREAMLINE COMBINATION AND ANY OVER 13/16" TOO!



Andrew Jackson quote: But you must remember, my fellow-citizens, that eternal vigilance by the people is the price of liberty, and that you must pay the price if you wish to secure the blessing.

Offline The Rusty Gear

  • Hero Member
  • *****
  • Join Date: Jun 2010
  • Posts: 607
  • Location: Edmonton, Canada
  • Pushing the limits of ignorance
Re: SHOW US YER MACHINE SHOP STUFF!
« Reply #4 on: January 26, 2011, 10:57:15 AM »
Wow, I certainly can't compete with UB!

My *ahem* "Machine shop" is housed in a closet. Well, not quite - There is an 8(?) foot long alcove in the garage about 2' deep (a closet!) The previous owners had shelving there, but I realized the potential of that area and tore the shelving down.

Below is my 10x22 Grizzly Lathe and you can also see my Princess Auto Cutoff Bandsaw tucked beside it



On the other side of the closet . . . I mean machine shop, are my Canadian Tire drill press and Baldor grinder.



Online goodfellow

  • RestroLibrarian
  • Knows nut from bolt
  • *****
  • Join Date: Jun 2010
  • Posts: 13119
  • Location: Northern Virginia
Re: SHOW US YER MACHINE SHOP STUFF!
« Reply #5 on: January 26, 2011, 11:53:48 AM »

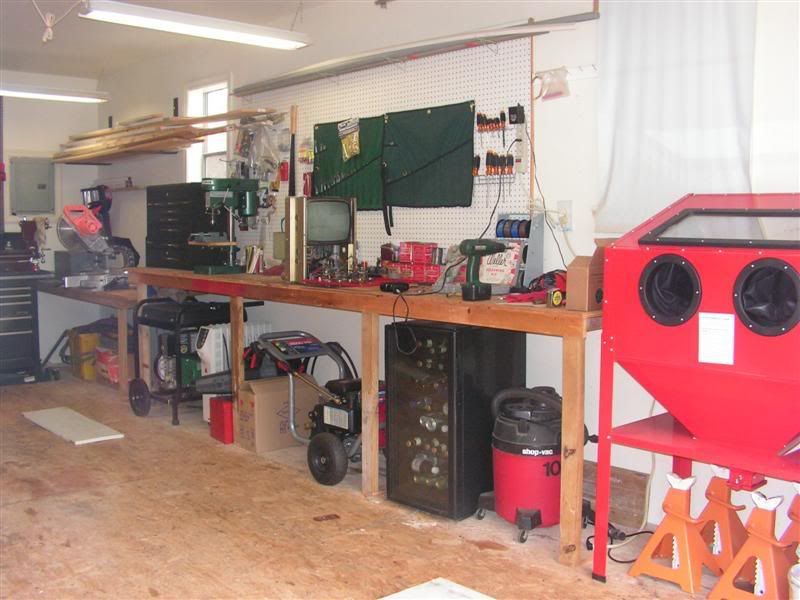

In a way I'm lucky. I have a separate machine shop building next to my garage that is dedicated to my electronics and machining work. It's intentionally separate from the house because I don't carry the swarf all over the garage and the living areas in the house. I've learned my lessons on swarf. It gets into every nook and cranny and even a small sliver can do some real damage to bare feet and animal paws. I'm pretty anal about this. So much so, that I keep a pair of shop boots in the machine shop, and will change boots before entering and exiting the shop. It works ---

My machine tools are VERY basic. No DRO's, or fancy electronic drives. I have some very cheap HF machines, that are enough to complete most all my machining tasks.

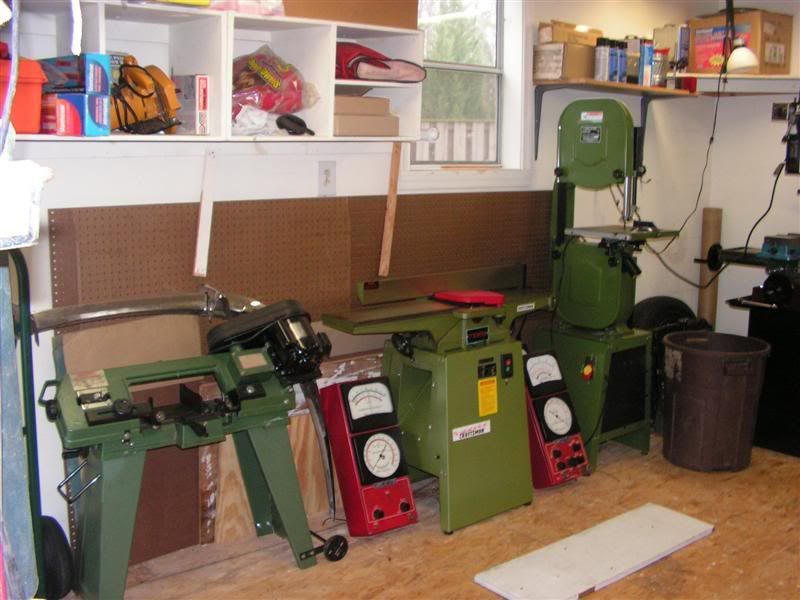

I converted this Taiwanese HF 14" vertical bandsaw for metal cutting. I also have the venerable Taiwanese 4x6 vertical/horizontal bandsaw which gets used the most.



I have an ENCO 17" drill press and a small Rockwell vari-speed drill press in the main garage next door. I do keep a small 5" drill press in the machine shop for electronics work. For HUGE drilling jobs in the machine shop, that HF geared head mill/drill will do the job just fine.



The HF sliding compoung mitre saw is currently setup to cut aluminum tubing. It works much faster than the chop saw or bandsaw.





That's about it --

EDIT -- as Buck pointed out, I forgot to add pics of the grinders and the 17" drill press.

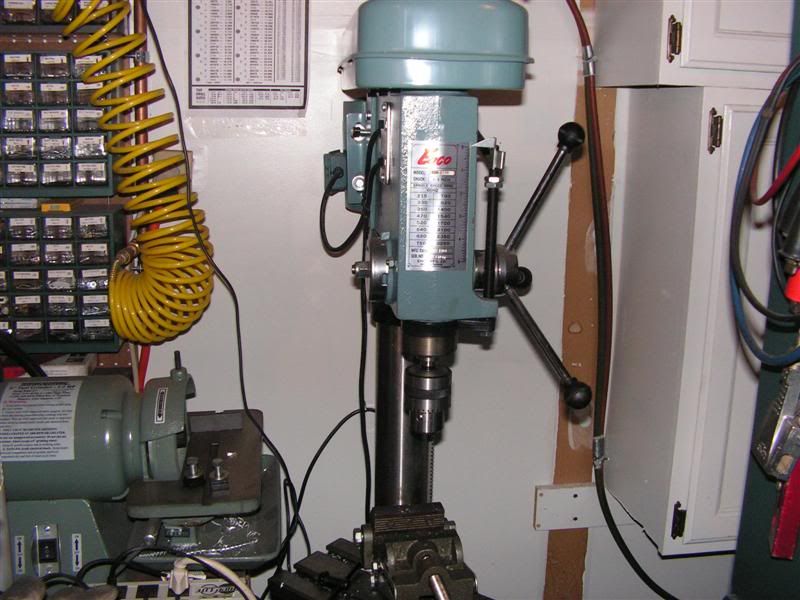

Early Enco 17" drill press from Taiwan. I like it because that model was able to step down the speed to 120 RPM



1/2HP Remington 120/220v bench grinder (Taiwan) -- a workhorse for wire wheeling. That grinder has seen three decades of use.

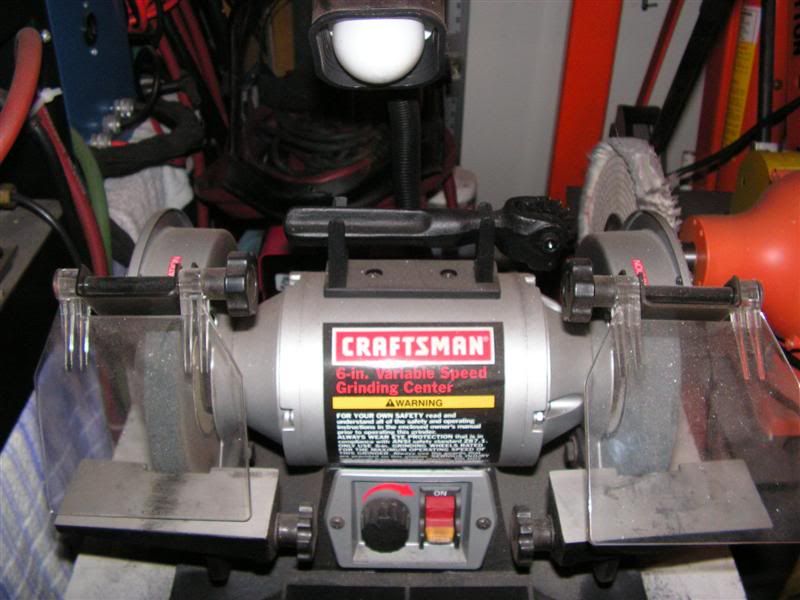

Ten year old Craftsman variable speed bench grinder. I like the variable speed, but everything else is pretty much cheap Chinese manufacture. Definitely not near the quality of an old Craftsman "box motor" grinder that Buck has.

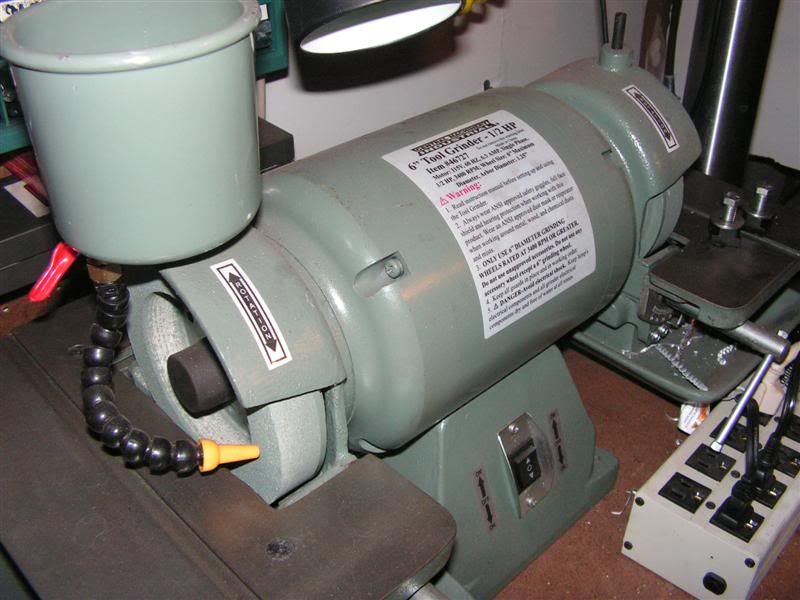

This is a Chinese clone of the venerable Baldor tool grinder. Surprisingly, it's a very good machine. Lots of power and torque, ultra smooth bearings, and the castings are massive (just like the old Baldor units). I really like this tool grinder!!
