Author Topic: The 246gts patented "bench grinder swing me up to use gizmo"  (Read 5656 times)

Offline 246gts

  • Hero Member
  • *****
  • Join Date: Jun 2010
  • Posts: 782
  • location: uk
    • Decadence Wedding Carriages
The 246gts patented "bench grinder swing me up to use gizmo"
« on: March 19, 2015, 01:51:39 PM »
On another thread Mr Fatfillup asked for more details of my invention which he named "the bench grinder swing me up to use gizmo".

Well here are the details.

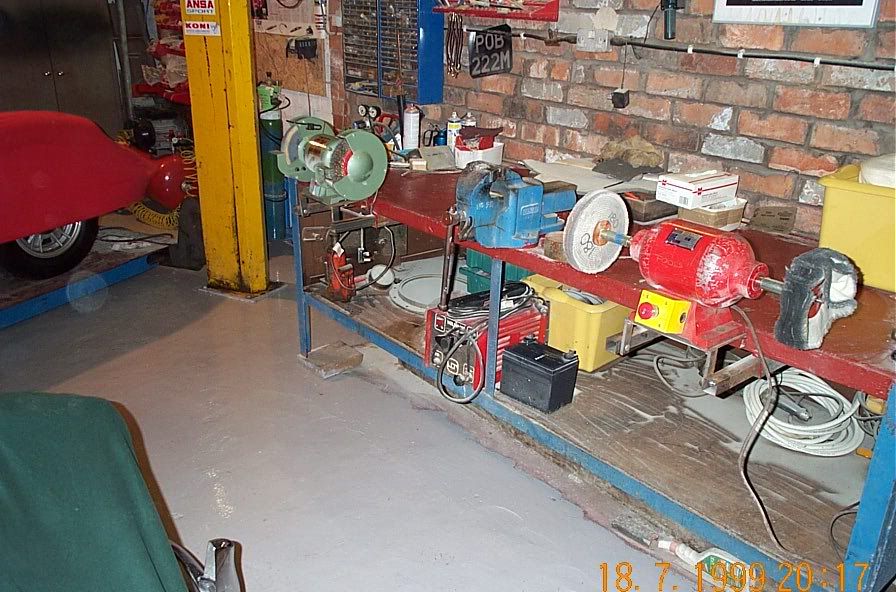

A few years ago, (more than 16 it seems from the photo records) I was looking to find a way of keeping the top of my bench clear, As I used to spend hours in my workshop just sitting and looking at an old grey car I had at the time I eventually came up with an idea. It may have been invented before but I can honestly say I never saw another and this is my idea.

First I welded two channel sections to the underside of the bench. These were spaced so as to fit a flat steel plate that I made to carry the grinder plus two square hollow sections which would act as sliders.




From the sliders I hung two pieces of flat bar which were welded to the square mounting plate fixed to the grinder.



When out of use the grinder is suspended from these and the sliders pushed in such that the grinder disappears below the bench.
When you need to use the grinder you pull out the grinder and rotate the whole unit so that the flat mounting plate turns over and the grinder comes to the top.
I wanted the grinder and polisher to stick out from the front of the bench so that if I am polishing long items the bench does not get in the way so I welded a piece of square tube to the front of the bench



To square things up and give a bit of rigidity to the system I drilled a hole in the square tube and welded a stud onto the flat plate so that when in position the stud locates in the hole.






The grinder is then fixed above bench level, sticking out from the front of the bench and is ready to be used





Sent from my iPhone using Tapatalk
« Last Edit: March 19, 2015, 02:09:49 PM by 246gts »

Offline Muddy

  • Knows nut from bolt
  • ***********
  • Join Date: Apr 2011
  • Posts: 10625
  • location: Rock, Pa
  • Wrenching To Keep The American Farmer Growing
Re: The 246gts patented bench grinder swing me up to use gimme
« Reply #1 on: March 19, 2015, 02:19:52 PM »
Great idea!!!!  beerdude
"And on the 8th day, God looked down on his planned paradise and said, "I need a caretaker." So God made a farmer."

Offline Heiny57

  • Hunt and peck king
  • ********
  • Join Date: Jun 2010
  • Posts: 4648
Re: The 246gts patented "bench grinder swing me up to use gizmo"
« Reply #2 on: March 19, 2015, 02:51:54 PM »
Exactly what I would of done.    :))


Really, that is a cool idea.
Wake Up America

If you can't fix it with a hammer, It must be electrical.

Online OldnSlo

  • Super Hero
  • ******
  • Join Date: Jan 2012
  • Posts: 2440
  • location: Arid-zona
Re: The 246gts patented "bench grinder swing me up to use gizmo"
« Reply #3 on: March 19, 2015, 03:18:42 PM »
I'm taking furious notes! Thanks for sharing.


Now.....just how am I going to get that vice and anvil to swing up on my particle board topped workbench. Hmmmmm....

Offline goodfellow

  • RestroLibrarian
  • Knows nut from bolt
  • *****
  • Join Date: Jun 2010
  • Posts: 12668
  • location: Northern Virginia
Re: The 246gts patented "bench grinder swing me up to use gizmo"
« Reply #4 on: March 19, 2015, 03:21:25 PM »
Brilliant! -- thanks for sharing Dave. That one deserves to be a sticky!!

Dave -- Do you mind if I move this thread over to the "Storage Solutions" section and make it a sticky?

Offline 246gts

  • Hero Member
  • *****
  • Join Date: Jun 2010
  • Posts: 782
  • location: uk
    • Decadence Wedding Carriages
Re: The 246gts patented "bench grinder swing me up to use gizmo"
« Reply #5 on: March 19, 2015, 03:26:30 PM »
No problem Ray

Offline Fins/413

  • A Tool whore
  • Global Moderator
  • Knows nut from bolt
  • *****
  • Join Date: Jun 2010
  • Posts: 12492
  • location: Wake Forest, NC
Re: The 246gts patented "bench grinder swing me up to use gizmo"
« Reply #6 on: March 19, 2015, 04:32:03 PM »
That idea is a keeper.
Eric Corse
1959 Chrysler New Yorker
1982 Ford Econoline
Wright tools
"A car without fins is just another car"

Offline fatfillup

  • numbnuts
  • Spins ratchet
  • *
  • Join Date: Jun 2010
  • Posts: 18772
  • location: Maryland
Re: The 246gts patented "bench grinder swing me up to use gizmo"
« Reply #7 on: March 19, 2015, 04:56:18 PM »
Thanks Dave, great idea.

I have been forced into getting more stuff into a fixed amount of space and love ideas like that.
That scalloped box end is one of the few BB features that doesn't make Elroy puke

Offline Lookin4_67GalaxieConv

  • ran when parked
  • Knows what a screwdriver is
  • ********
  • Join Date: Jun 2010
  • Posts: 5048
  • location: Atlanta, GA
Re: The 246gts patented "bench grinder swing me up to use gizmo"
« Reply #8 on: March 19, 2015, 07:50:33 PM »
Very innovative!   thumbsup2
This car is a pile of crap. Noisy, rattly, slow and underpowered and has a reputation for being unreliable. I want one.

Quote from: Toecutter
But we're going to teach him.  You are going back for him.

Offline brslk

  • Can use hammer
  • *********
  • Join Date: Apr 2011
  • Posts: 9565
  • location: Edmonton, Alberta, Canada.
  • Lackey and general stooge.
Re: The 246gts patented "bench grinder swing me up to use gizmo"
« Reply #9 on: March 26, 2015, 07:53:37 PM »
Awesome  idea.
I'm just a guy in a garage with some tools...

Bruce.

Offline jabberwoki

  • Doooh missed out
  • Knows what a screwdriver is
  • ********
  • Join Date: Sep 2010
  • Posts: 5722
  • location: puyallup
Re: The 246gts patented "bench grinder swing me up to use gizmo"
« Reply #10 on: March 26, 2015, 08:00:17 PM »
Can you design me one for this?
There is a very fine line between a hobby and a mental illness.

Does the need justify the want ? Or does the want suffice?

Offline BoredMechanic

  • Super Hero
  • ******
  • Join Date: Oct 2014
  • Posts: 2424
Re: The 246gts patented "bench grinder swing me up to use gizmo"
« Reply #11 on: March 26, 2015, 08:02:04 PM »
Can you design me one for this?

When he's done..do mine too.

Offline brslk

  • Can use hammer
  • *********
  • Join Date: Apr 2011
  • Posts: 9565
  • location: Edmonton, Alberta, Canada.
  • Lackey and general stooge.
Re: The 246gts patented "bench grinder swing me up to use gizmo"
« Reply #12 on: March 26, 2015, 08:09:22 PM »
I have grinder envy.
I'm just a guy in a garage with some tools...

Bruce.

Offline fatfillup

  • numbnuts
  • Spins ratchet
  • *
  • Join Date: Jun 2010
  • Posts: 18772
  • location: Maryland
Re: The 246gts patented "bench grinder swing me up to use gizmo"
« Reply #13 on: March 27, 2015, 08:25:46 AM »
Can you design me one for this?

Wow is that 220 volt?  3 phase?
That scalloped box end is one of the few BB features that doesn't make Elroy puke

Offline eborcim

  • Hunt and peck king
  • ********
  • Join Date: Jun 2010
  • Posts: 3913
  • location: Missouri
  • 143
Re: The 246gts patented "bench grinder swing me up to use gizmo"
« Reply #14 on: March 27, 2015, 12:06:10 PM »
Coming soon to a HF near you!

Offline twertsy

  • Super Hero
  • ******
  • Join Date: Feb 2015
  • Posts: 2864
  • location: Woodbridge, VA
    • The Tool Archives
Can you design me one for this?
Lol.  I was thinking the same thing.  I'm thinking we'd need a motor to "sling " the motor..........I know mine is well over 200#!
